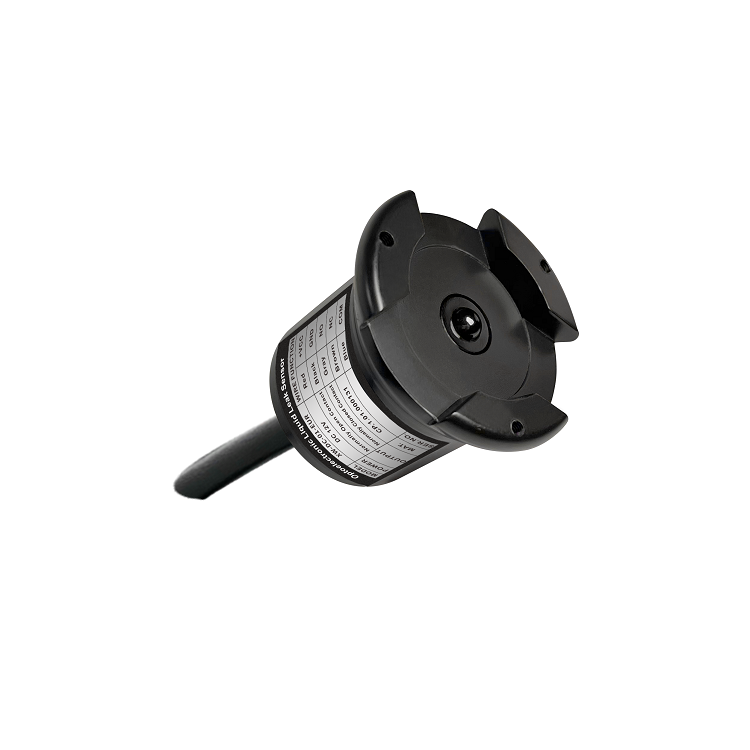

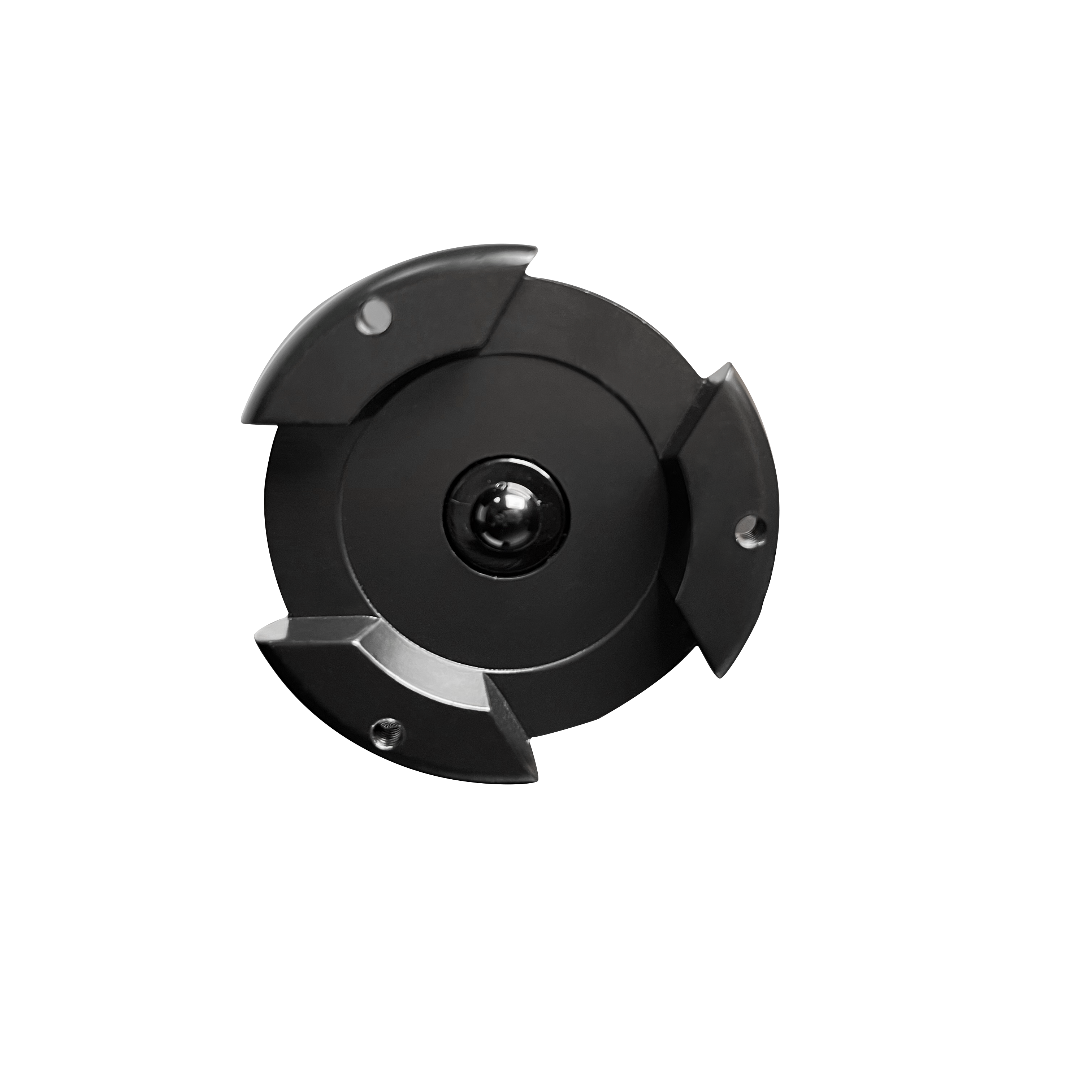

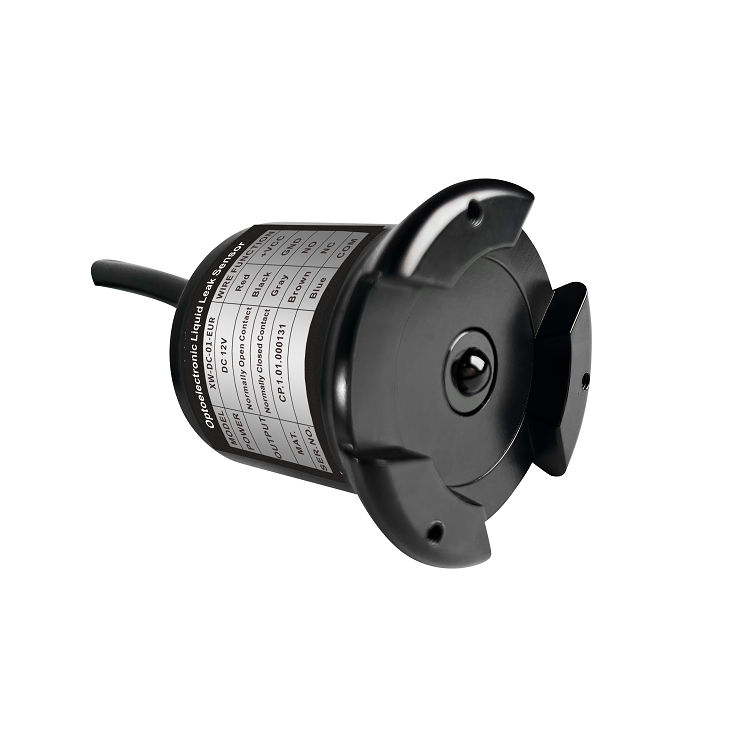

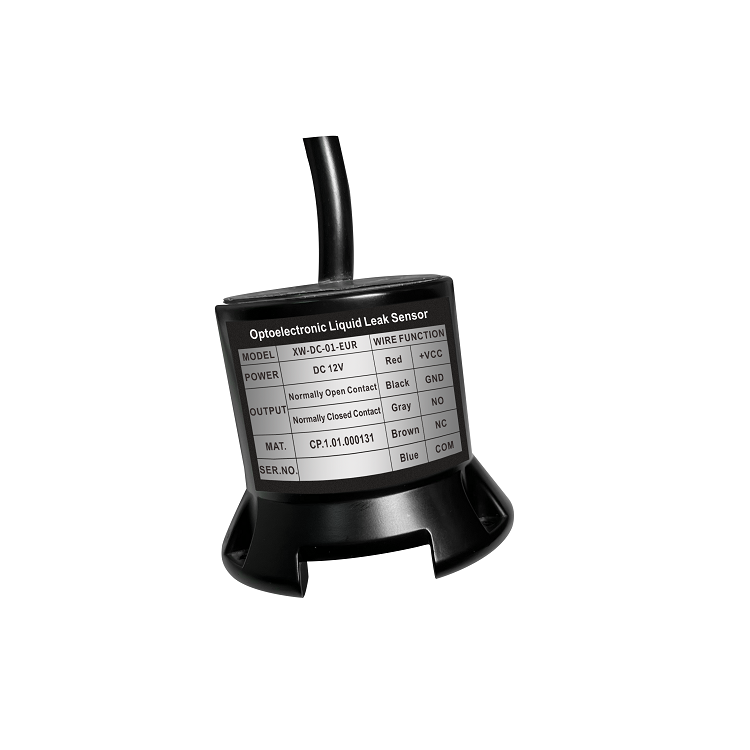

Product OverviewXW-DC-01-EUR Optoelectronic Liquid Leak Sensor adopts optoelectronic detection principle. The structure is fully sealed design, the housing is made of zinc alloy, the external adopts electroplating process, and the inner loop is sealed with glue. It can achieve the function of explosion-proof, dust-proof and water-proof. The electronic components are little affected by environmental factors, so as to ensure the high precision and reliability of products.
Application & Features
IDC
Communication stations
Petrol station
Oil storage
Warehouse
FeaturesThe sensor can be used to detect various conductive and non-conductive liquids, such as water, gasoline, diesel and acid-base liquids with a concentration of less than 30% after dilution.
Provide a set of alarm relay outputs. When leakage occurs, the relay will act. After the danger is eliminated, the sensor will automatically return to the normal state without manual on-site operation.
Explosion-proof design, suitable for the places with explosion-proof requirements, such as gas stations, oil depots, and dust-concentrated spaces.
Adopts zinc alloy housing, and internal loop adopts a potting design, and the protection level can reach IP68.
Adopt electromagnetic compatibility design, with anti-surge, anti-static, anti-EFT and other protection functions. At the same time, EMI conforms to EN55032:2015 Class B standard, and has the characteristics of low radiation, strong anti-interference ability, high precision and high reliability.
Using industrial-grade electronic components can not only ensure high sensitivity, but also reduce false alarms caused by various external factors.
With three screw fixing positioning holes, it's firm and reliable for installation.
Technical Data
|
Environmental rating |
Operating Temperature |
-40℃~70℃ |
|
Operating humidity |
0~95%RH(No condensation) |
|
|
Power supply |
Supply voltage |
DC 12V |
|
Power Consumption |
≤0.5W |
|
|
Relay |
Contact type |
Dry Contact, 1 set, NO |
|
Load capacity |
120VAC/2A, 24VDC/2A |
|
|
EMC protection grade |
ESD |
Contact discharge±8KV, Air discharge±15KV |
|
Surge |
±4KV |
|
|
EFT |
±4KV |
|
|
Electrical Characteristics |
Insulation resistance |
＞2200MΩ |
|
Withstand Voltage |
＞4KV |
Operation Principle
XW-DC-01-EUR Sensor is installed in the leakage monitoring area, and the leakage data can be collected through the switch value collection module and uploaded to the host computer. Sensor relay output signal can be used to control peripheral equipment such as acousto-optic alarm, telephone dialer, SMS module, switch value collection module, etc.

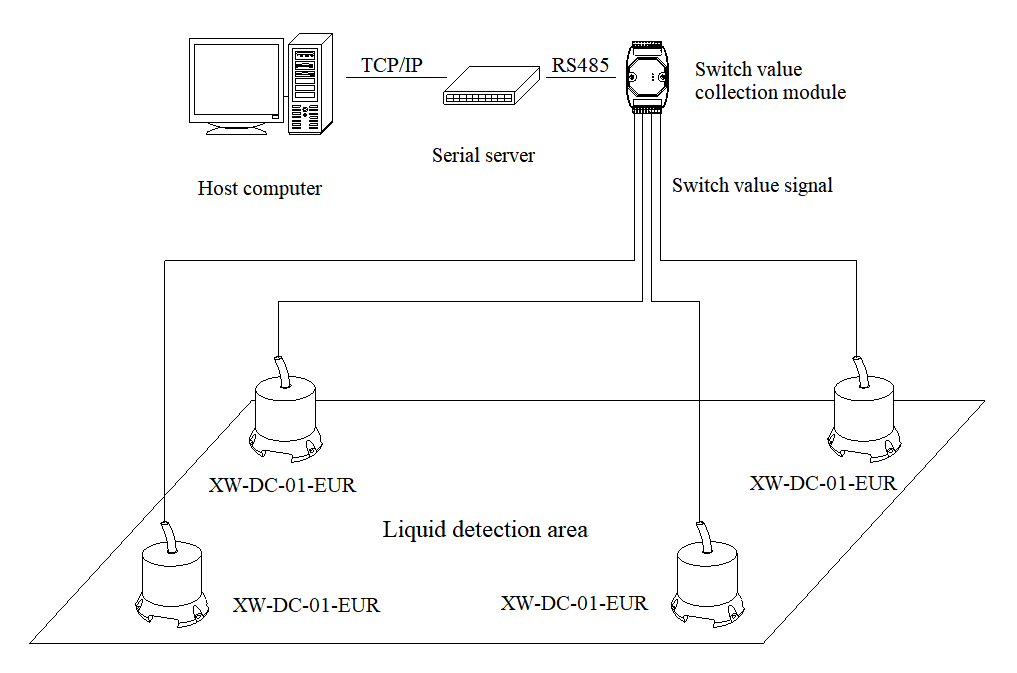

Detection system topology diagram

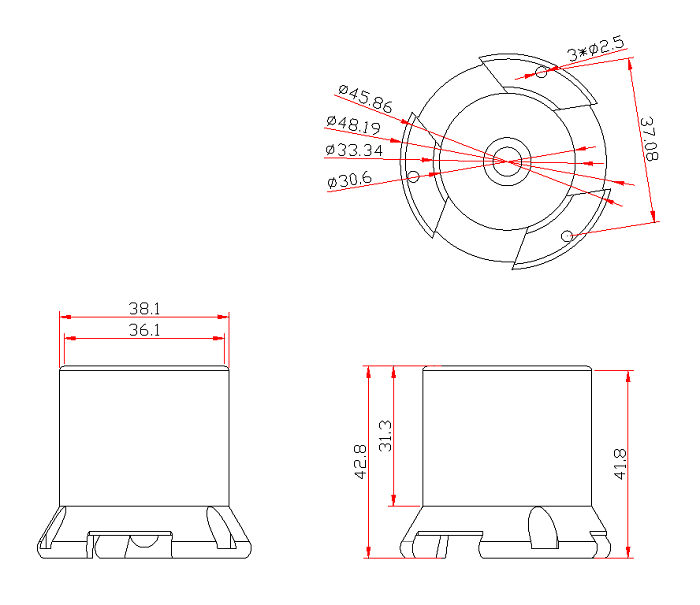

Installation
Using screws to fix the three positioning hole on the floor or water tank. Avoid high temperature, high humidity, vibration, corrosive gases, and other electronic interference sources.
