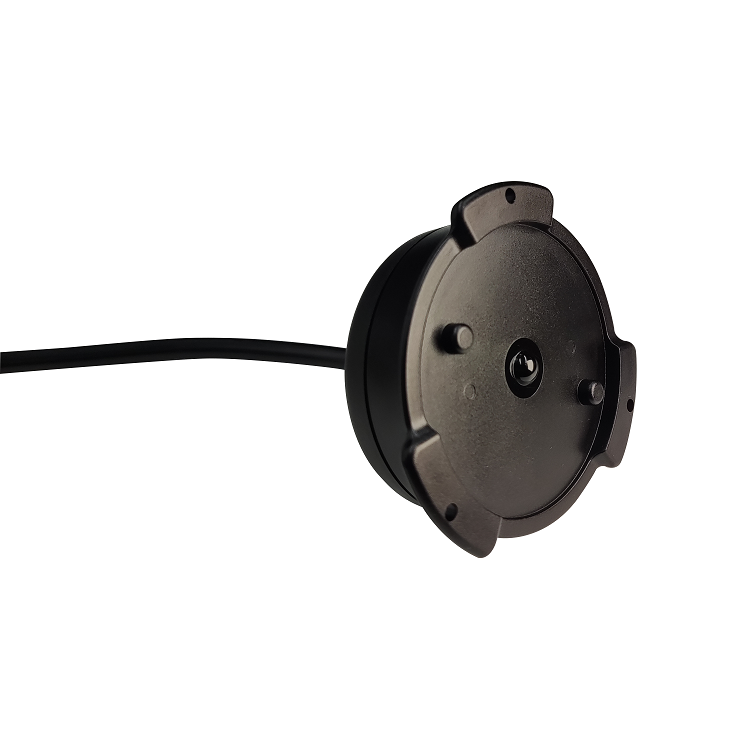

Product OverviewXW-DC-01B Optoelectronic Liquid Leak Sensor adopts optoelectronic detection principle. The structure is fully sealed design, the housing is made of plastic, and the inner circuit is sealed with glue. The electronic components are little affected by environmental factors, so as to ensure the high precision and reliability of products. It has the characteristics of high sensitivity, fast response time, convenient use and easy installation. The relay signal output by the sensor can be integrated with various monitoring systems to realize remote monitoring.
Application & Features
Generator room
Intelligent Building
IDC room
Communication stations
Warehouse

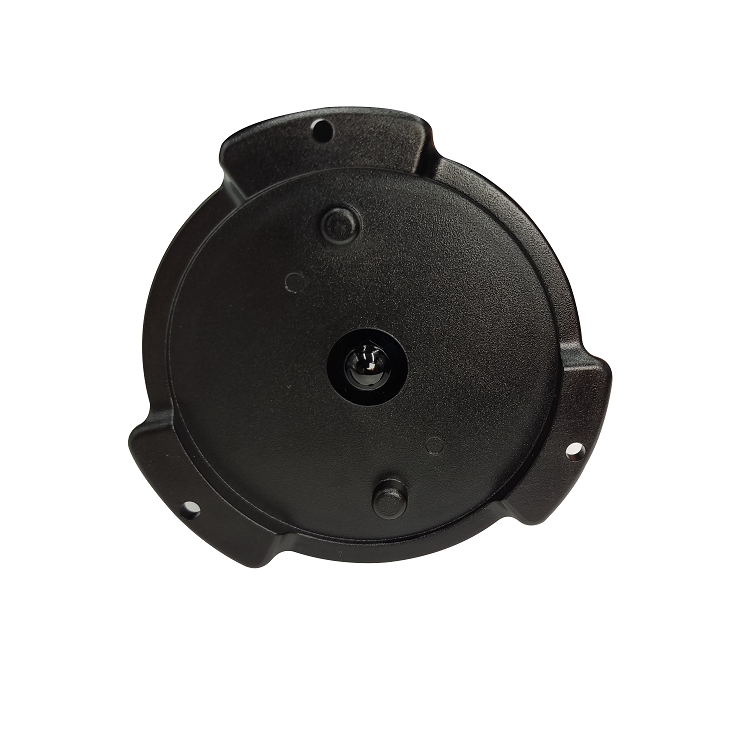

FeaturesWith three screw fixing positioning holes, it's firm and reliable for installation.
Using industrial-grade electronic components can not only ensure high sensitivity, but also reduce false alarms caused by various external factors. Adopt electromagnetic compatibility design, with anti-surge, anti-static, anti-EFT and other protection functions.
Provide a set of alarm relay output. When leakage occurs, the relay will act. After the danger is eliminated, all parts of the sensor will automatically return to the normal state without manual on-site operation.
Adopts photoelectric detection principles, which can detect the leakage of conductive liquid and non-conductive liquid at the same time.
With status indicator of normal and leakage alarm, green light is always on in the normal state, and red light is always on in the leakage alarm state.
Technical Data
|
Environmental rating |
Operating Temperature |
-40℃~70℃ |
|
Operating humidity |
0~95%RH(No condensation) |
|
|
Power supply |
Supply voltage |
DC 9~30V(recommend 12V DC) |
|
Power Consumption |
≤1W |
|
|
Relay |
Contact type |
Dry Contact, 1 set, NO/NC |
|
Load capacity |
120VAC/2A, 24VDC/2A |
|
|
EMC protection grade |
ESD |
Contact discharge±8KV, Air discharge±15KV |
|
Surge |
±4KV |
|
|
EFT |
±4KV |
|
|
Weight |
89.9g |
|
Product Size
(Unit: mm, error ±0.5mm)
Operation Principle
XW-DC-01A Optoelectronic Liquid Leak Sensor is installed in the liquid leakage monitoring area. When liquid leakage is detected, the leakage data is uploaded to the monitoring platform through switch value collection to realize real-time centralized monitoring. Sensor output switch value signal can be used to control peripheral equipment such as acousto-optic alarm, telephone dialer, SMS module, switch value collection module, etc.
