Product OverviewXW1100D Water sense cable is suitable for all kinds of liquid leakage risk places due to its cost-effective. It can be connected with most of the leak alarm host and form a leak detection system with high detection sensitivity, rapid and reliable response. The sense cable is made of two light high-density polyethylene wires pressed around the central axis of the spiral. Compared with parallel structure wires, the spiral structure can reduce environmental electromagnetic interference and false alarm rate, and greatly improve the strength and service life of the cable. The sense cable has automatic recovery function and can be reused.
Application & Features
Water supplying pipeline
Data Centre
Intelligent Building
Library
Warehouse
FeaturesSpiral structure not only reduce the environmental electromagnetic interference and false alarm, but also greatly improve the strength and service life.
Two core wires design based on the principle of short circuit which can be used with Xiangwei non-locating leak detectors as well as other brands.
Waterproof structure of the plastic plug, convenient cascade and expand detection range. Variety of length meet the needs of detection ranges.
Small diameter does not occupy too much space which can be used in narrow environments
Flexible for installation in complex and bending pipelines
Technical Data
|
Cable diameter |
3.8mm |
|
External resistance of cable conductor |
≤0.1Ω/m |
|
Cable weight |
21g/m±2 g/m |
|
Cable color(Central axis) |
Blue |
|
Material(Central axis) |
PVC |
|
Operating temperature |
-20℃~75℃ |
Product Selection
|
Part number |
Description |
|
XW1100D-5m |
5 meter non-locating leak sense cable |
|
XW1100D-10m |
10 meter non-locating leak sense cable |
|
Note: Length can be customized according to the requirements |
|
Operation Principle
When the liquid contact with the sense cable, the inner core wires of two sense wires are conductive in contact with liquid, forming a circuit, leak detector detects the leakage, send an alarm signal.

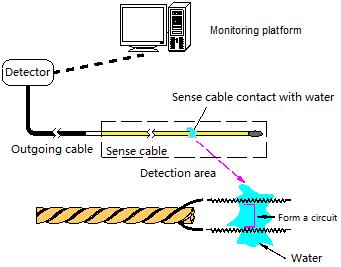

FIG. 1 Schematic diagram of operation principle
