Product OverviewXW1100C High antiflaming Liquid-cooled sense cable adopt woven cover design, with the characteristics of dustproof, preventing false alarm, high reliability and sensitive, and automatic recovery function, can be reusable. Suitable for liquid-cooled servers, high-precision equipment and other places with high requirements on size and sensitivity.
Application & Features
IDC
Data Centre
Liquid-cooled server
New energy vehicles
Storage battery
Featureswoven cover design not only reduce the environmental electromagnetic interference and false alarm, but also greatly improve the strength and service life. The protective cover is made of environmentally friendly nylon fiber material with high insulation and can be directly laid on the metal surface.
Two core wires design based on the principle of short circuit which can be used with Xiangwei non-locating leak detectors as well as other brands.
Adopt multi-strand core structure design, which increases the flexibility of the cable and effectively solves the problem that the sense cable can not be restored or even damaged during bending.
Using the factory injection molding standard joint to connect the outgoing wire, which greatly increase the reliability and pretty appearance.
Technical Data
|
Cable diameter |
2.2mm |
|
Cable color |
Yellow |
|
Material |
Environmentally friendly nylon fiber |
|
Sensing characteristics |
Sensing ability: 0.1 ml: 375 kΩ; 0.2 ml: 302 kΩ; 0.3 ml: 246 kΩ; 0.4 ml: 207 kΩ; 0.5 ml: 162 kΩ; 0.6 ml: 141 kΩ; 0.7 ml: 126 kΩ; 0.8 ml: 103 kΩ; 0.9 ml: 82 kΩ; 1.0 ml: 81 kΩ Measurement environment: temperature 25, humidity 65%RH Measurement object: tap water (conductivity :147 S/cm) |
|
Insulation characteristic |
Resistance between 2 conductors: 100MΩ/10m |
|
Working environment |
Temperature: -20~120℃ Humidity: 0~95%RH (no condensation) |
|
Fire resistance |
V0 |
|
Reset characteristic |
After water leak detection, it can be restored and by natural drying or artificial drying, and can be reused. But if there are other conductive pollutants in the water leakage, it can not be reused. |
|
Maximum tension |
10kgf |
|
Minimum bending radius |
R≥4mm (less than this bending radius may degrade the performance or even damage) |
|
Maximum bending times |
1000 times (more than 1000 times, may degrade the performance or even damage) |
|
Cable weight |
4.7 g/m±0.5g/m |
Product Structure
Internal structure
Conductor: alloy material, Woven layer: environmentally friendly nylon fiber

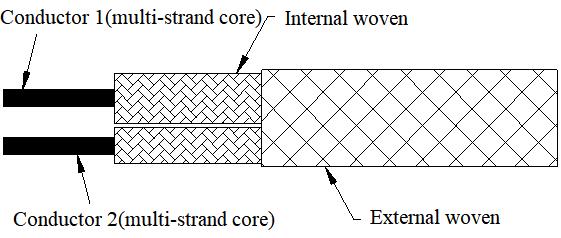

Sense cable structure diagram

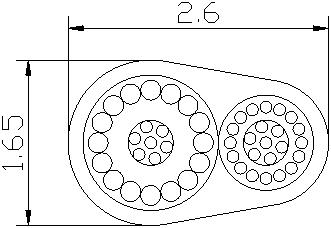

Sense cable cross section diagram

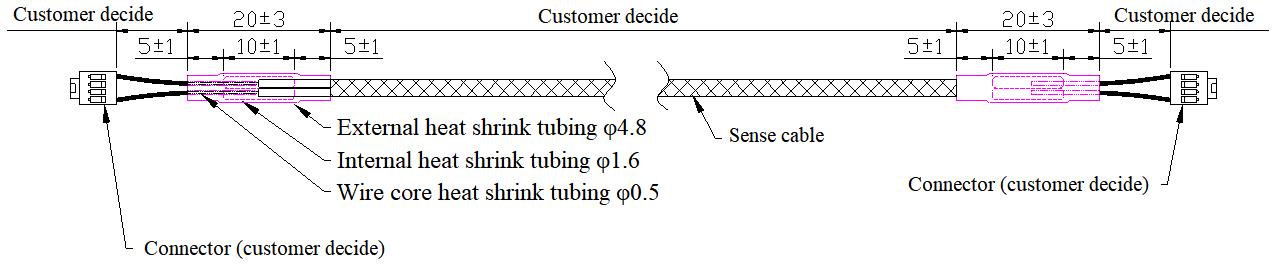

Wire harness structure

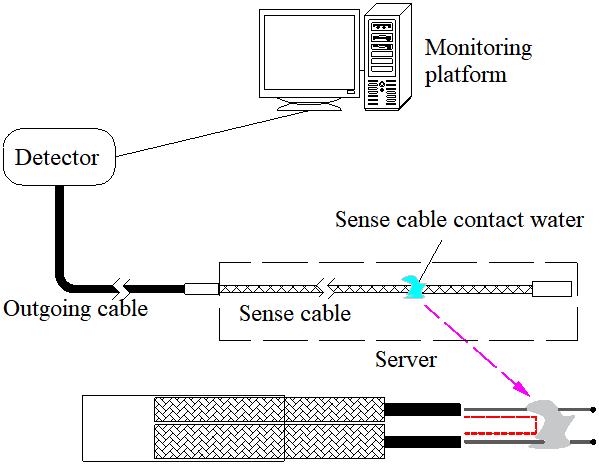

Operation Principle
When the liquid contact with the sense cable, the inner core wires of two sense wires are conductive in contact with liquid, forming a circuit, leak detector detects the leakage, send an alarm signal.
