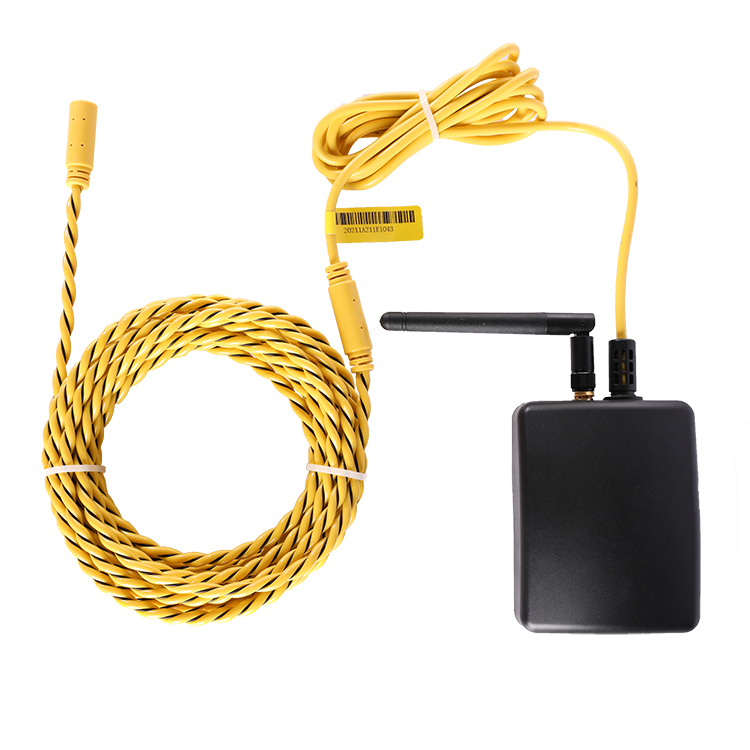

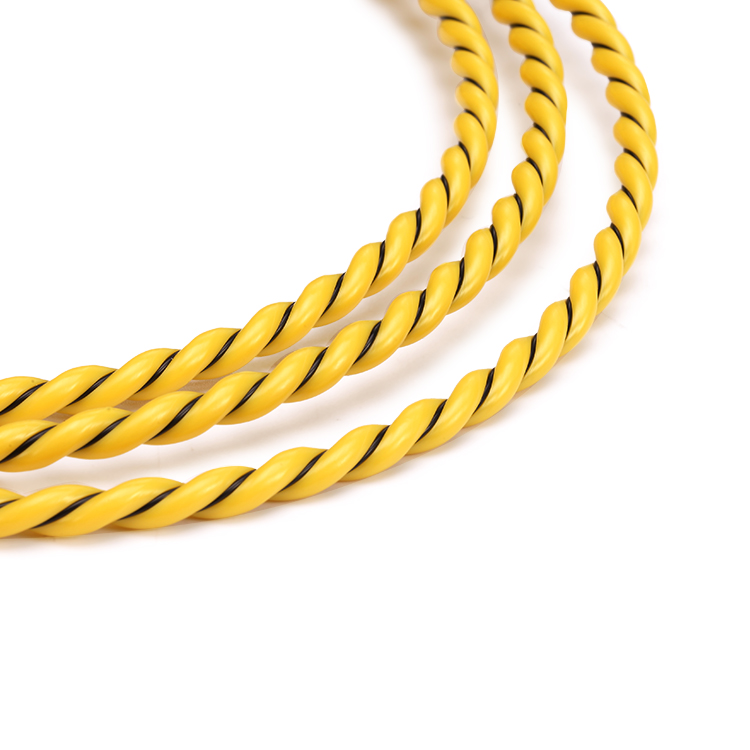

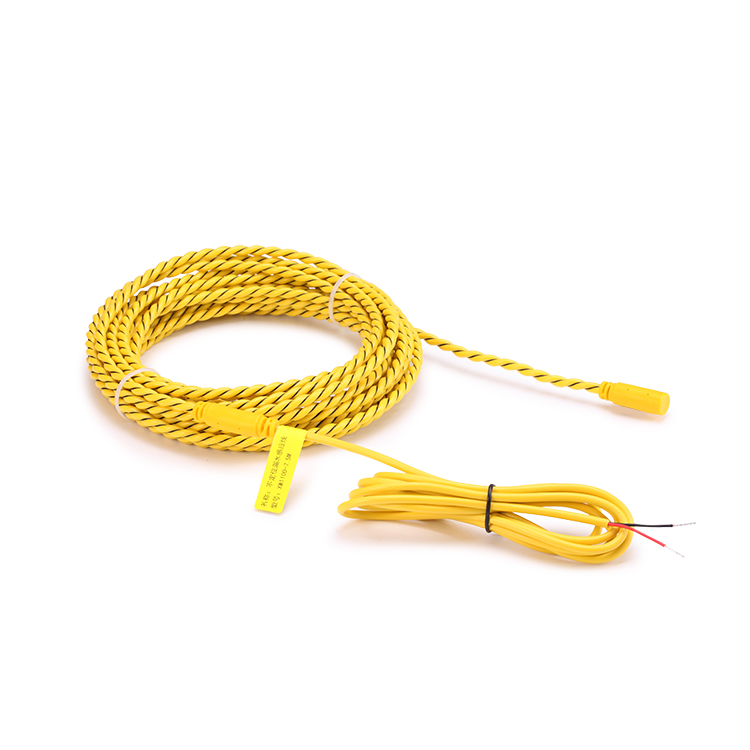

Product OverviewXW1100 Spiral Non-locating Water Sense Cable is suitable for all kinds of liquid leakage risk places due to its cost-effective. It can be connected with most of the leak alarm host and form a leak detection system with high detection sensitivity, rapid and reliable response. The sense cable is made of two light high-density polyethylene wires pressed around the central axis of the spiral. Compared with parallel structure wires, the spiral structure can reduce environmental electromagnetic interference and false alarm rate, and greatly improve the strength and service life of the cable.
Application & Features
IDC
Data Centre
Library
Museum
Warehouse
FeaturesSpiral structure not only reduce the environmental electromagnetic interference and false alarm, but also greatly improve the strength and service life.
Two core wires design based on the principle of short circuit which can be used with Xiangwei non-locating leak detectors as well as other brands.
Waterproof structure of the plastic plug, convenient cascade and expand detection range. Variety of length meet the needs of detection ranges.
Flexible for installation in complex and bending pipelines
Technical Data
Cable diameter
6.0mm
External resistance of cable conductor
≤0.1Ω/m
Cable weight
28g/m±2 g/m
Cable color(Central axis)
Yellow
Material(Central axis)
PVC
Operating temperature
-20℃~75℃
Fire resistance
V0
Product Selection
Part number
Description
XW1100-3m
3 meter non-locating leak sense cable
XW1100-5m
5 meter non-locating leak sense cable
XW1100-10m
10 meter non-locating leak sense cable
Note: Length can be customized according to the requirements
