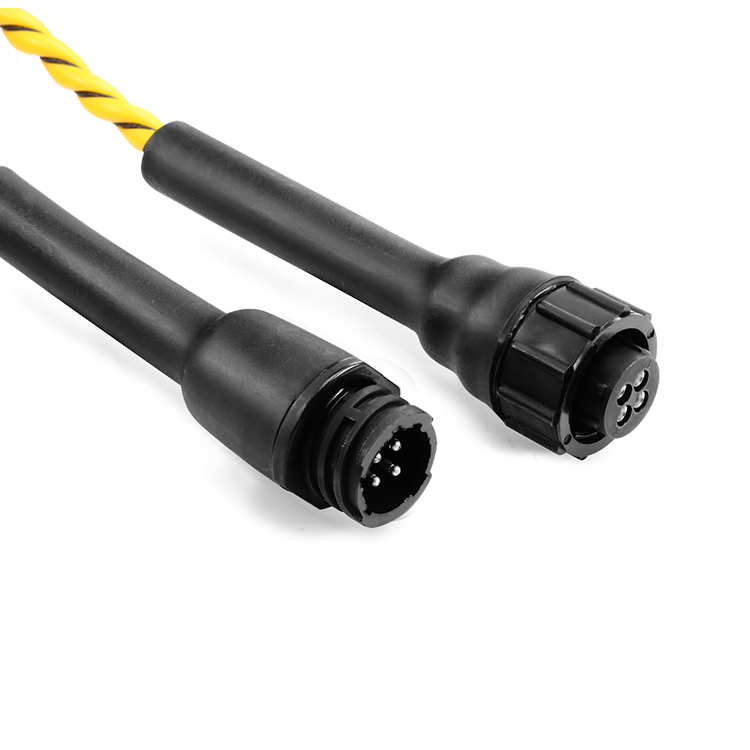

Product OverviewXW1100B Anti-static non-locating water sense cable is suitable for harsh and complex environment leak detection places due to its unique nylon protective cover with anti-static and anti-interference performance, can greatly reduce the false alarm rate. It can be connected with XW non-locating leak detector to form a leak detection system with high detection sensitivity, rapid and reliable response. The sense cable is made of two light high-density polyethylene wires pressed around the central axis of the spiral. Compared with parallel structure wires, the spiral structure can reduce environmental electromagnetic interference and false alarm rate, and greatly improve the strength and service life of the cable.
Application & Features
Water supplying pipeline
Data Centre
Library
Museum
Warehouse
FeaturesSpiral structure not only reduce the environmental electromagnetic interference and false alarm, but also greatly improve the strength and service life.
Two core wires design based on the principle of short circuit which can be used with Xiangwei non-locating leak detectors as well as other brands.
Waterproof structure of the plastic plug, convenient cascade and expand detection range. Variety of length meet the needs of detection ranges.
Suitable for harsh and complex environment leak detection places due to its unique nylon protective cover with anti-static and anti-interference performance.
Flexible for installation in complex and bending pipelines
Technical Data
|
Cable diameter |
6.0mm |
|
External resistance of cable conductor |
≤0.1Ω/m |
|
Cable weight |
28g/m±2 g/m |
|
Cable color(Central axis) |
Yellow |
|
Material(Central axis) |
PVC |
|
Operating temperature |
-20℃~75℃ |
|
Fire resistance |
V0 |
Product Selection
|
Part number |
Description |
|
XW1100B-3m |
|
|
XW1100B-5m |
5 meter non-locating leak sense cable |
|
XW1100B-10m |
|
|
Note: Length can be customized according to the requirements |
|
Operation Principle
When the liquid contact with the sense cable, the inner core wires of two sense wires are conductive in contact with liquid, forming a circuit, leak detector detects the leakage, send an alarm signal.
FIG. 1 Schematic diagram of operation principle
