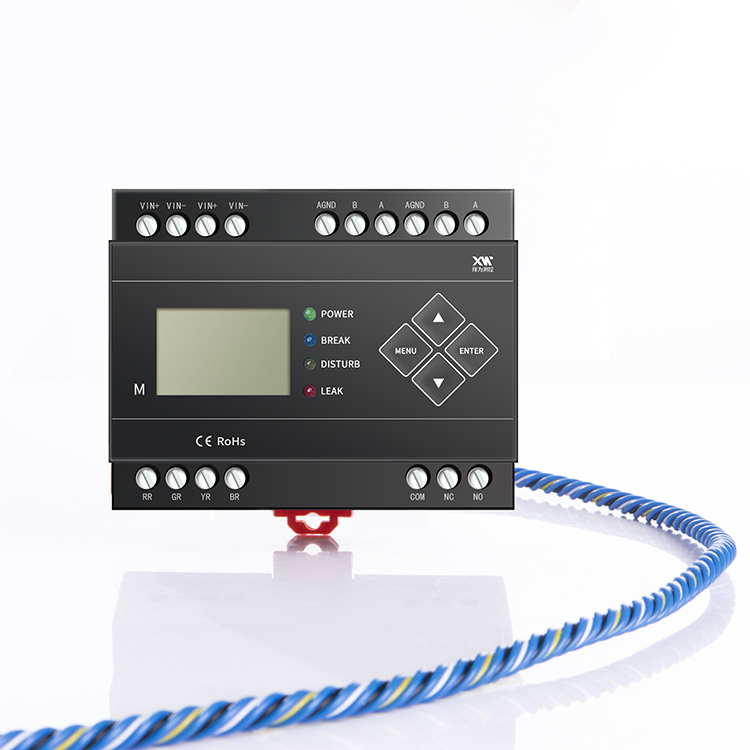

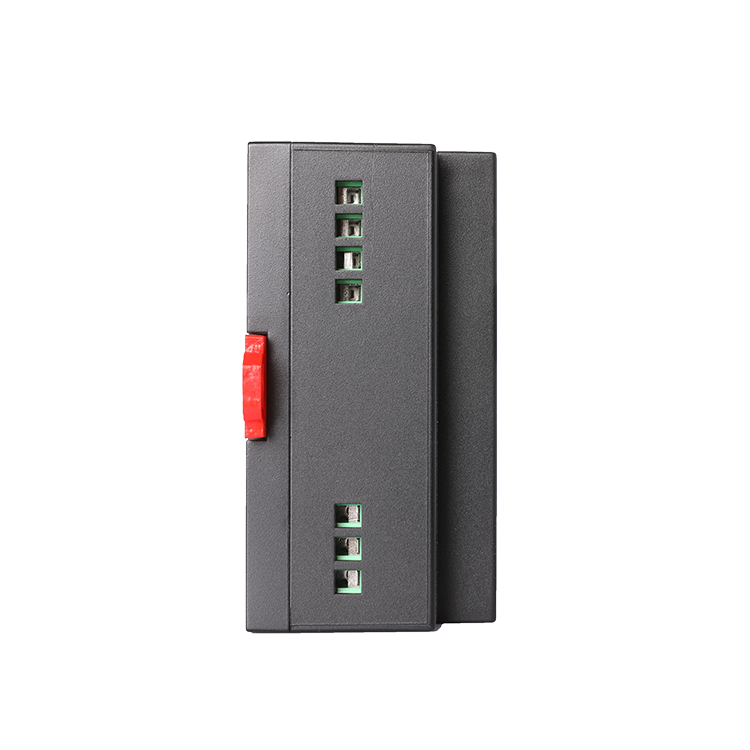

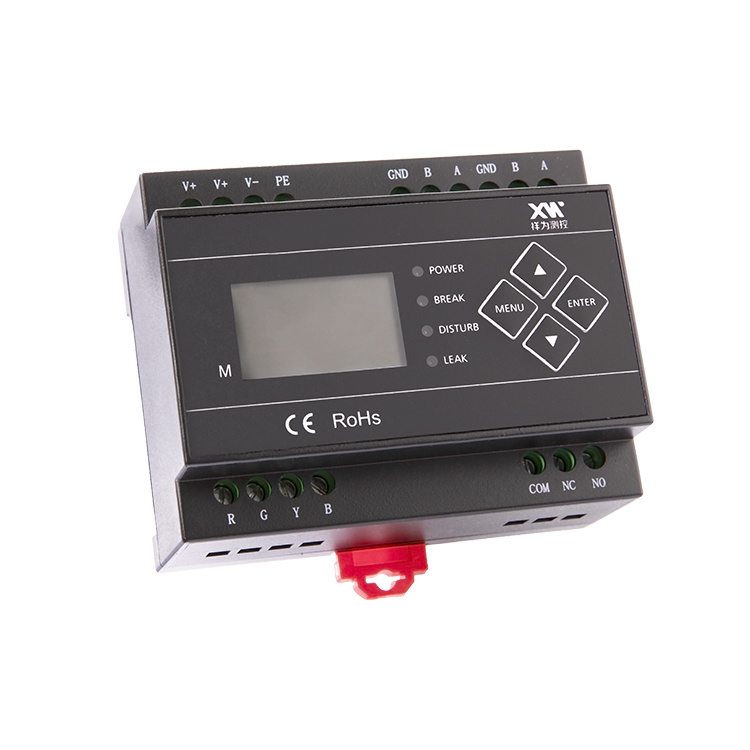

Product OverviewXW-PC-3A-PRO Locating Leak detection alarm units can detect the area up to 1500 meters, monitoring of environmental leakage, once the liquid is detected, the sensor immediately alarm and accurately locate the leakage position and trigger the relay. Device parameters such as sensing sensitivity, communication address and baud rate can be set by pressing buttons on the interface. The specific location of leakage can be read through the LCD display screen. The relay contact signal and 485 signal output by the detector can be integrated with various monitoring systems to realize remote monitoring.
Application & Features
Long distance pipeline
IDC
Data centre
Library
Museum
Warehouse
FeaturesUsing industrial-grade electronic components can not only ensure high sensitivity, but also reduce false alarms caused by various external factors.
Can adjust the sensor sensitivity, communication address and baud rate by pressing buttons on the panel.
With fault alarm, leakage alarm, interference alarm and other functions, and can display the status of the sensor through the indicator and LCD screen.
The detection distance is up to 1500 meters.
Adopt standard industrial modules and DIN rail mounting, all connections can be easily done through terminals. When leakage occurs, the relay act and leakage indicator light up, and the controller automatically restores to normal state after danger elimination, no need manual operation.
Technical Data
|
Sensing performance |
detection distance |
1500m |
|
Response time |
15～20s |
|
|
Detection accuracy |
±0.5m+1% |
|
|
Reading accuracy |
0.1m |
|
|
RS485interface |
Communication protocol |
MODBUS-RTU, MODBUS-ASCΠ self-adaption |
|
Bus address |
1~254(default 1) |
|
|
Baud rate |
1200, 2400, 4800, 9600(default), 19200bps |
|
|
Data format |
N,8,1 |
|
|
RelayOutput |
Contact type |
Dry Contact, 1 set, NC/NO |
|
Load capacity |
250VAC/3A、30VDC/3A |
|
|
Environmental rating |
Operating Temperature |
-20℃~70℃ |
|
Operating humidity |
0~95%RH(No condensation) |
|
|
Power supply |
Supply voltage |
DC 9~30V(recommend 12V DC) |
|
Power Consumption |
19mA |
|
|
EMCprotection grade |
ESD |
Contact discharge±8KV, Air discharge±15KV |
|
Surge |
±4KV |
|
|
EFT |
±4KV |
Operation Principle

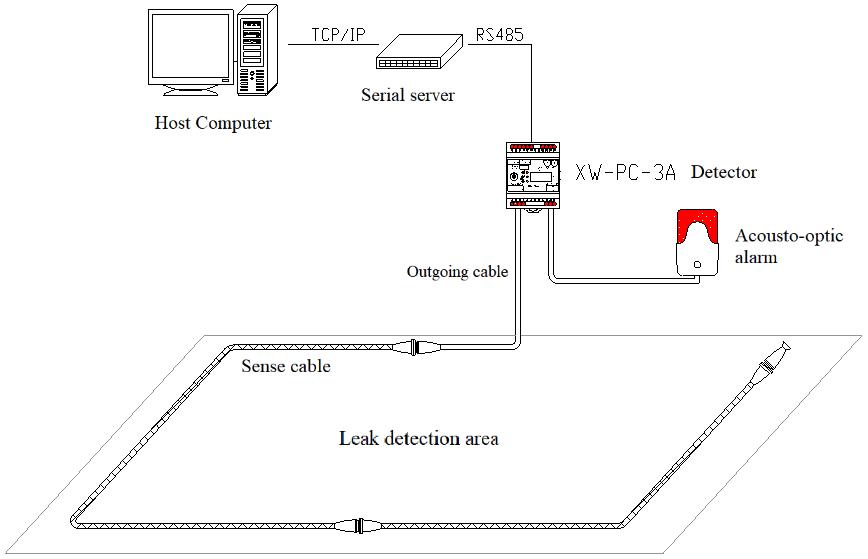

XW-PC-3A-PRO sensor connect with sense cables, and once the liquid is detected, the leakage data can be uploaded leakage data to the host computer through RS485 signal, accurately locate the leakage position and trigger the relay action. Sensor relay output signal can be used to control peripheral equipment such as acousto-optic alarm, automatic valve and intelligent alarm, etc.
Installation

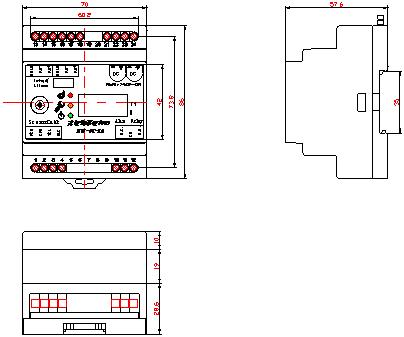

Product dimensions (Unit: mm, error: ±0.5mm)

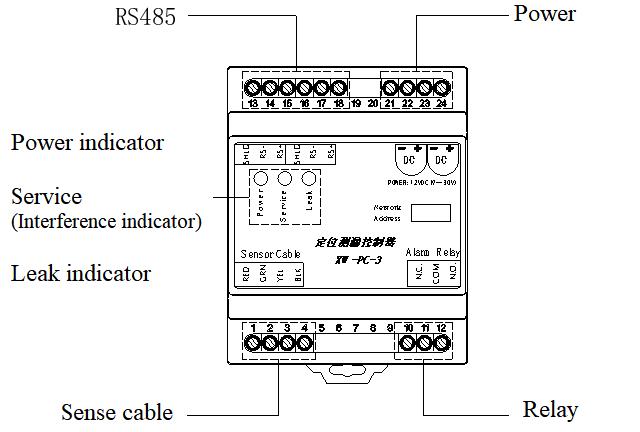

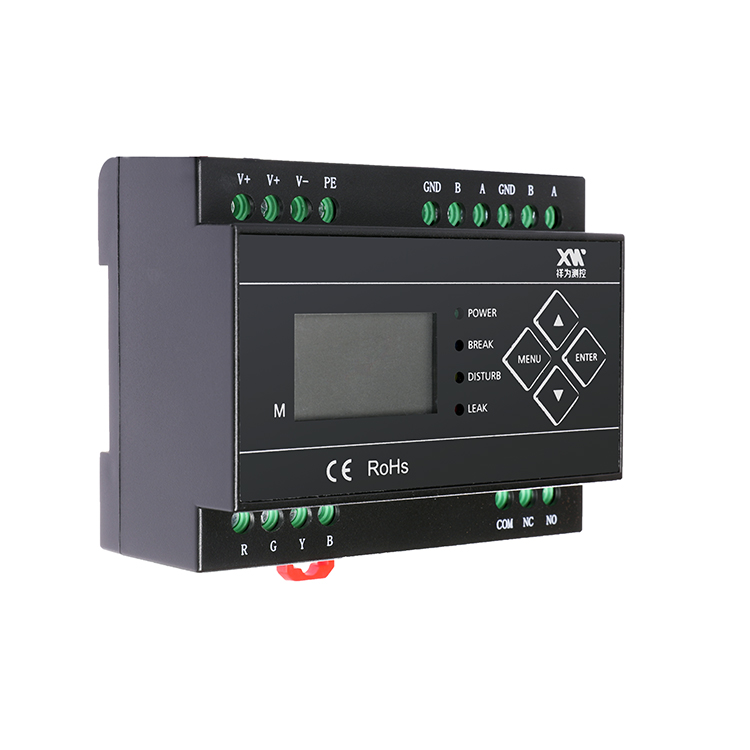

Buttons and indicators

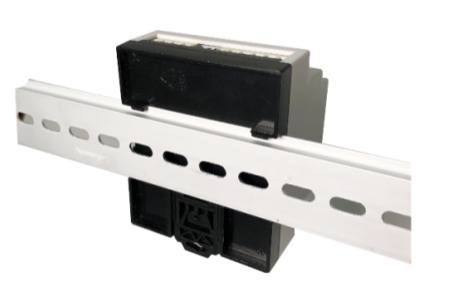

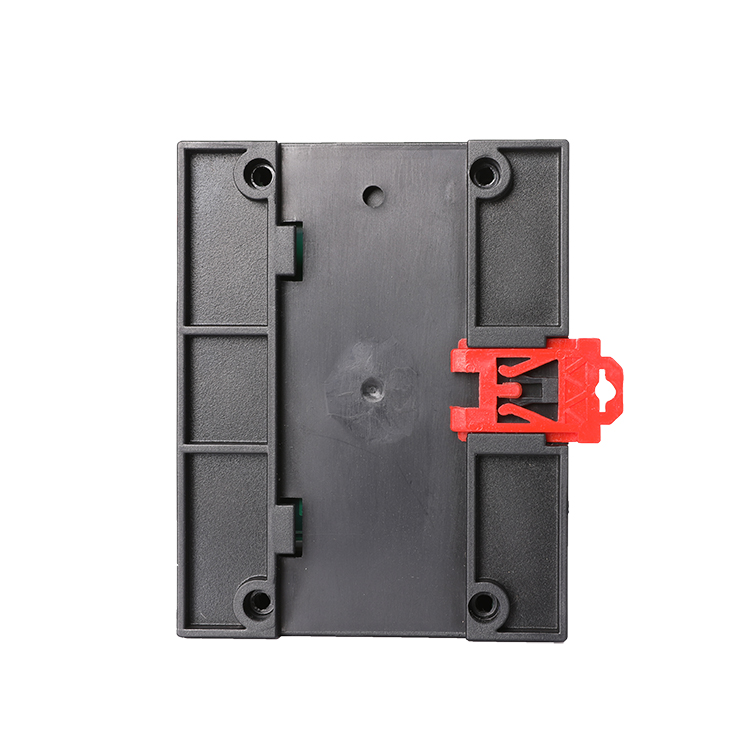

Install the detector in a secure indoor collection box or cabinet where it is easy to maintain and check. Avoid high temperature, high humidity, vibration, corrosive gases, and other electronic interference sources. XW-PC-3A-PRO sensor buckle is mounted on a standard 35 mm DIN rail.
